The Power of Custom EL Lamination Stacking Machines

The Transformer Manufacturing Bottleneck

Manufacturing high-quality control transformers requires precise winding of copper wire, but there is an equally critical, and notoriously tedious, step: Core Stacking.

Transformers use a laminated iron core to reduce eddy currents. This core is built by stacking hundreds of thin steel sheets—typically "E" and "I" (or "E" and "L") shaped laminations—interleaved together.

The Problem with Manual Stacking

Traditionally, workers sit and manually interleave these sharp metal laminations one by one. This process is: - Incredibly slow, acting as the primary bottleneck in production. - Prone to human error, as missing a lamination or misaligning them reduces transformer efficiency. - Physically straining, leading to worker fatigue and potential cuts.

The Custom Automation Solution

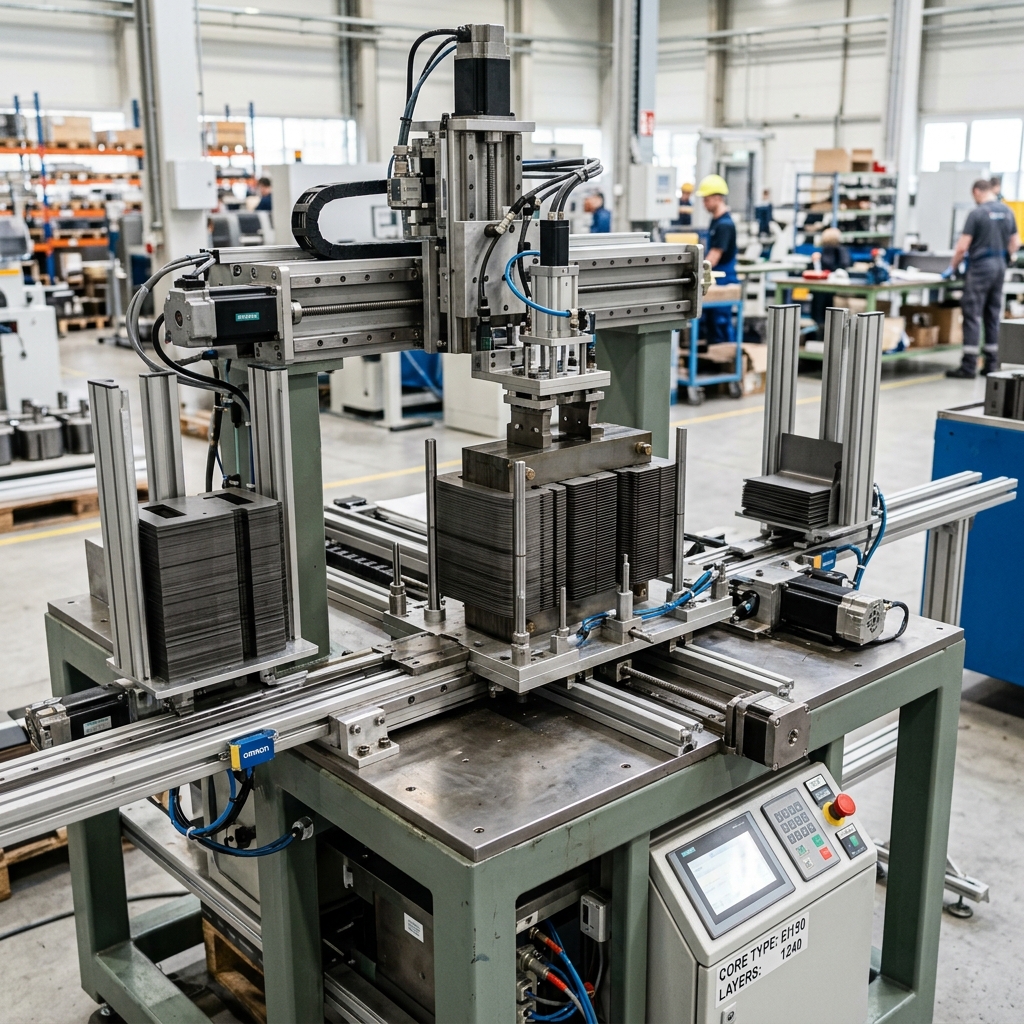

At Sri Vaarii Automatiion, we don't just build transformers; we build the machines that build them. Our custom-engineered EL Lamination Stacking Machines automate this entire tedious process.

How it works: The machine precisely feeds the E and L laminations from dual hoppers, aligning and interlocking them through the pre-wound copper bobbin at high speed.

The Incredible ROI

By introducing an automated stacking machine into a transformer production line, SMEs experience a paradigm shift: - Throughput Multiplies: A machine can stack a core in seconds that would take a human several minutes. - Perfect Consistency: The magnetic core is built flawlessly every single time, ensuring the final transformer hits its exact VA rating without humming or vibration. - Labor Reallocation: Skilled workers are freed from tedious stacking to focus on complex winding, testing, and quality assurance.

If you manufacture transformers and are struggling to scale production, an EL Stacking Machine is the ultimate investment for your factory floor.
