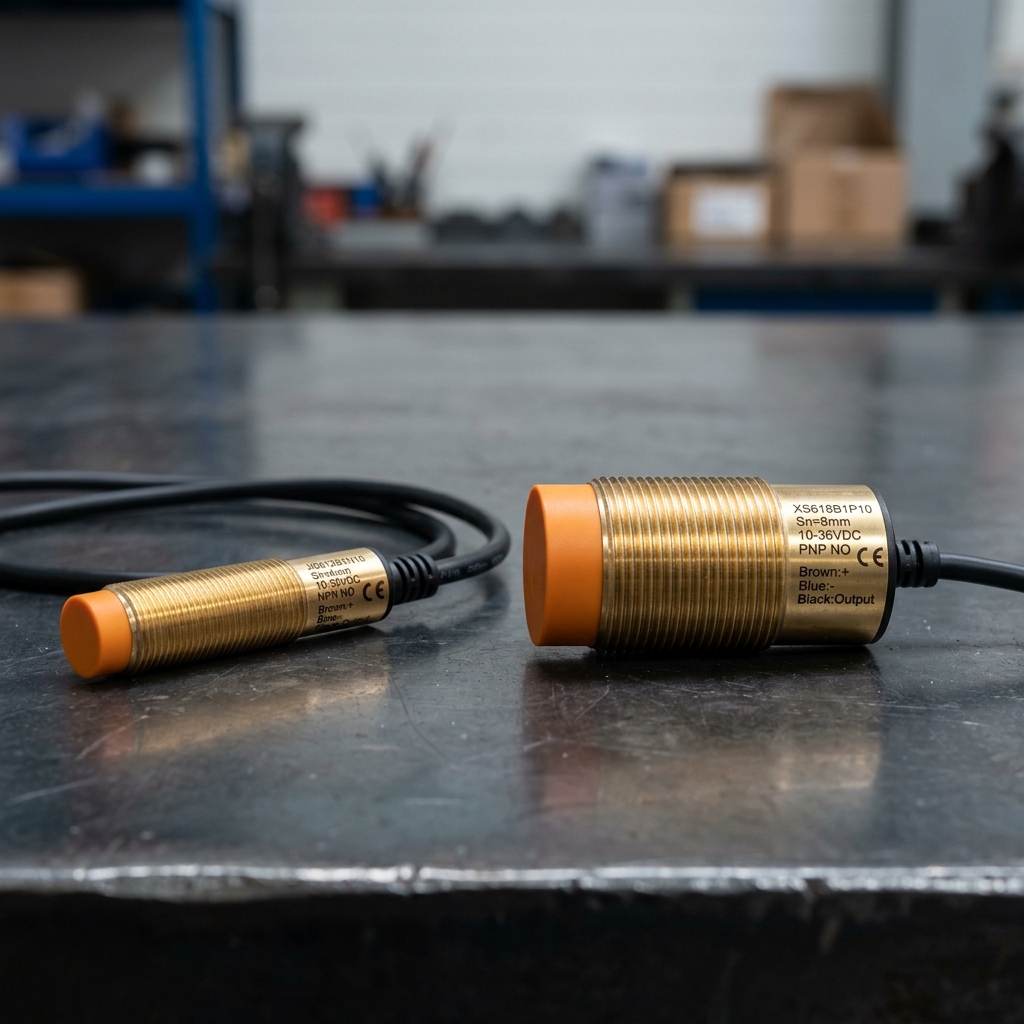

M12 vs M18 Proximity Sensor: Which Size is Right for Your Application?
Overview
The "M" number refers to the thread diameter in millimeters. An M12 sensor has a 12mm diameter body, while an M18 has an 18mm body. This size difference affects sensing distance, mounting options, and suitability for different applications.
Side-by-Side Comparison
| Specification | M12 Sensor | M18 Sensor |
|---|---|---|
| Body Diameter | 12mm | 18mm |
| Flush Sensing Distance | 2mm | 5mm |
| Non-Flush Sensing Distance | 4mm | 8mm |
| Switching Frequency | 1000 Hz | 1000 Hz |
| Typical Length | 50-60mm | 50-70mm |
| Mounting Hole | 12mm | 18mm |
| Best For | Tight spaces, small targets | Longer range, larger targets |
When to Choose M12
- Limited mounting space — The smaller 12mm body fits in tighter locations
- Small target detection — Detecting small metal parts, screws, or thin plates
- High-density installations — Multiple sensors close together on a machine
- Conveyor belt applications — Position detection where space between rollers is limited
- PCB or electronics assembly — Detecting small components on assembly lines
When to Choose M18
- Longer sensing distance needed — 5-8mm range vs 2-4mm for M12
- Larger targets — Detecting bigger metal objects, machine parts, or containers
- Harsh environments — The larger body is more robust and easier to handle
- Easier installation — Larger mounting hole is simpler to drill and align
- General factory automation — The most popular "all-rounder" size in Indian industry
Cost Consideration
M12 and M18 sensors are similarly priced. The choice should be based on your application requirements, not cost. However, if you need the longest possible sensing distance without going to M30, the M18 non-flush variant (8mm range) offers the best value.
Mounting Tips
M12: - Use a 12mm drill bit for the mounting hole - Tighten with the provided hex nut — do not over-torque - Maintain minimum 24mm spacing between adjacent M12 sensors (flush type)
M18: - Use an 18mm drill bit for the mounting hole - Tighten with the provided hex nut - Maintain minimum 36mm spacing between adjacent M18 sensors (flush type)
Sri Vaarii's M12 and M18 Range
We manufacture both M12 and M18 sensors in all configurations: - DC NPN / PNP (3-wire) - AC NO / NC (2-wire) - Flush and Non-Flush variants - Custom cable lengths available - No minimum order quantity
All sensors come with IP67 protection, brass housing with nickel plating, and CE certification. Contact us for bulk pricing or custom specifications.
