Understanding IP67 Protection in Industrial Sensors
Decoding the IP Rating
When specifying industrial sensors, you will almost always see an "IP" rating—typically IP65, IP67, or IP69K. But what do these numbers actually mean, and why should you care?
"IP" stands for Ingress Protection. It is an international standard (IEC 60529) used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt) and moisture.
The Two Digits Explained
The rating is broken down into two specific digits. Let's look at IP67:
The First Digit: Solid Particle Protection (6)
The first number indicates the level of protection that the enclosure provides against access to hazardous parts and the ingress of solid foreign objects. - 6 means Dust Tight. There is no ingress of dust whatsoever; complete protection against contact. This is the highest possible rating for solid particles.
The Second Digit: Liquid Ingress Protection (7)
The second number indicates the level of protection against harmful ingress of water. - 7 means Immersion up to 1 meter. Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (typically up to 1 meter of submersion for 30 minutes).
Why IP67 Matters for Your Shop Floor
You might not plan on dropping your machine into a swimming pool, so why do you need an IP67 rating?
In real-world manufacturing, sensors face brutal conditions: - CNC Machining: Sensors are continuously sprayed with high-pressure coolant and metal swarf. - Food Processing: Equipment must be washed down daily with high-pressure water jets and cleaning chemicals. - Textile & Cement: Micro-fine dust coats everything and will short out unprotected electronics.

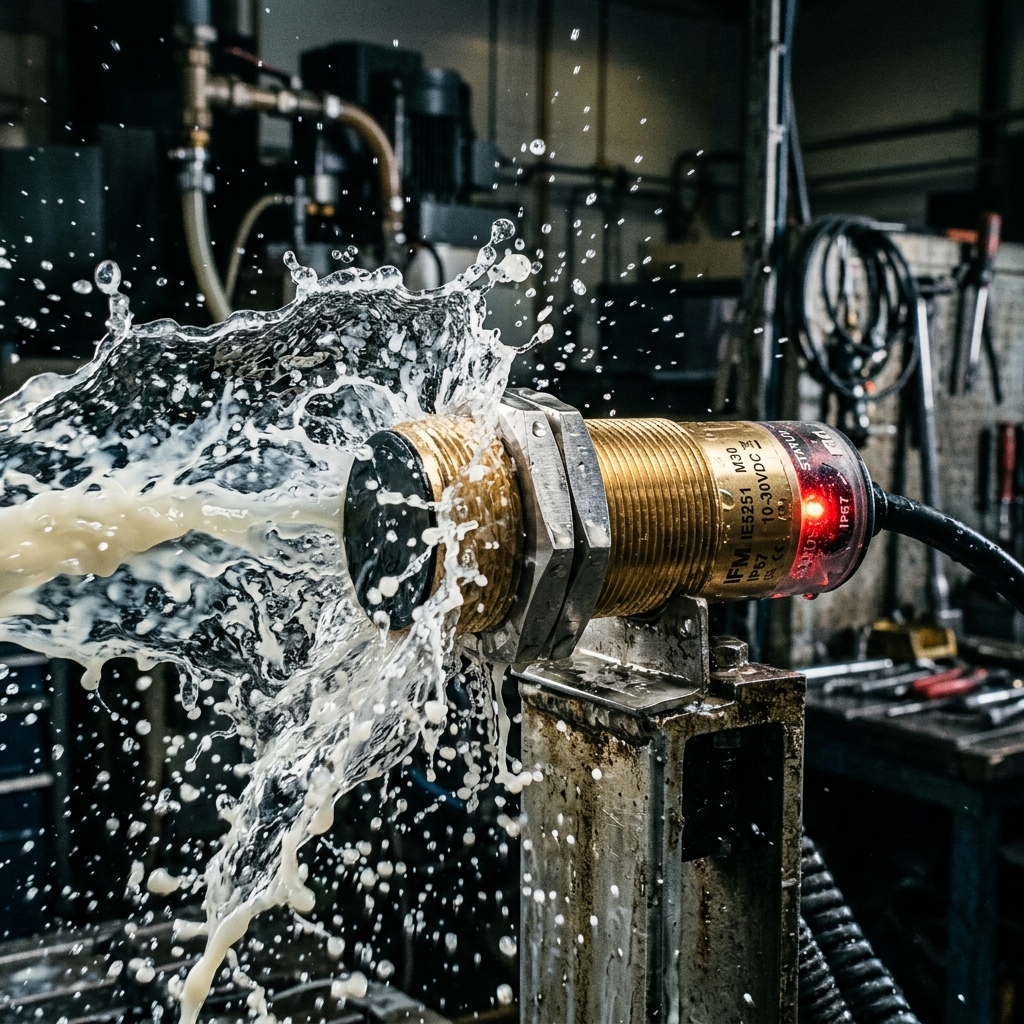

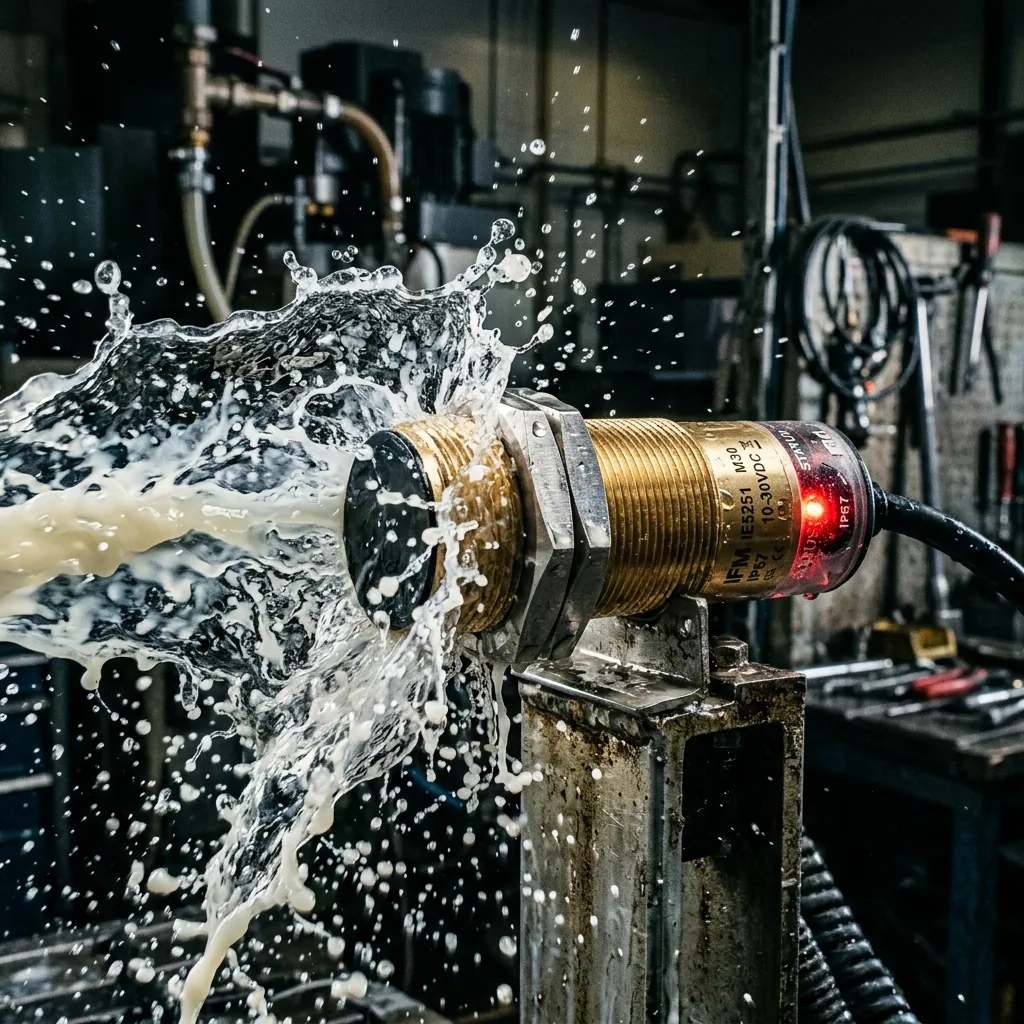

An IP67 rated sensor ensures that neither the micro-dust of a cement plant nor the cutting fluid of a CNC lathe will penetrate the electronics and cause a failure.
Sri Vaarii's Standard of Quality
At Sri Vaarii Automatiion, all of our standard inductive and photoelectric sensors are built to an IP67 rating. We achieve this through meticulous epoxy potting techniques and high-quality sealing rings, ensuring that our sensors perform reliably, no matter how harsh your environment gets.
