M18 AC NC NON FLUSH
Model: SVA 18 AC NC NON FLUSH|Series: M18 Inductive Proximity Sensor

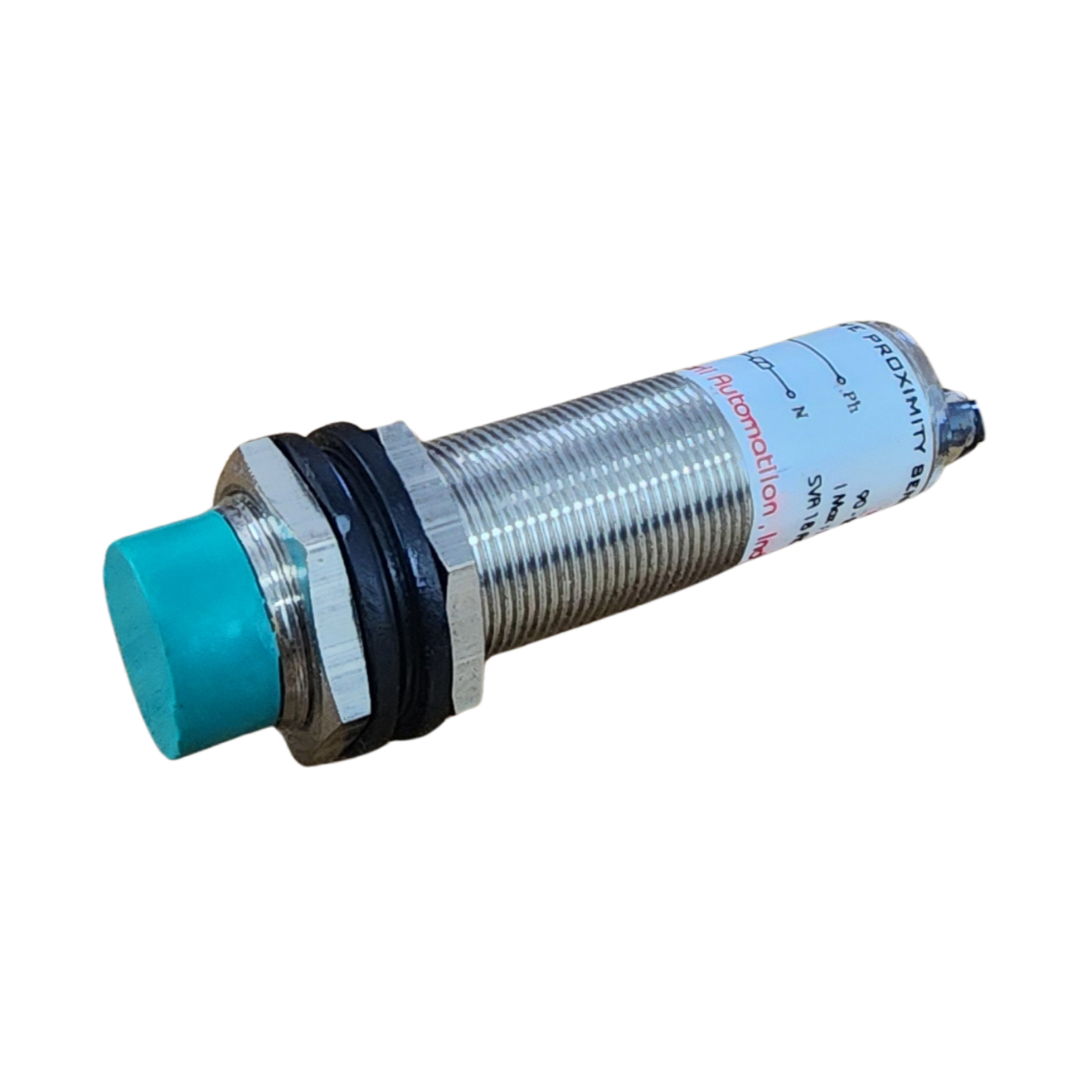

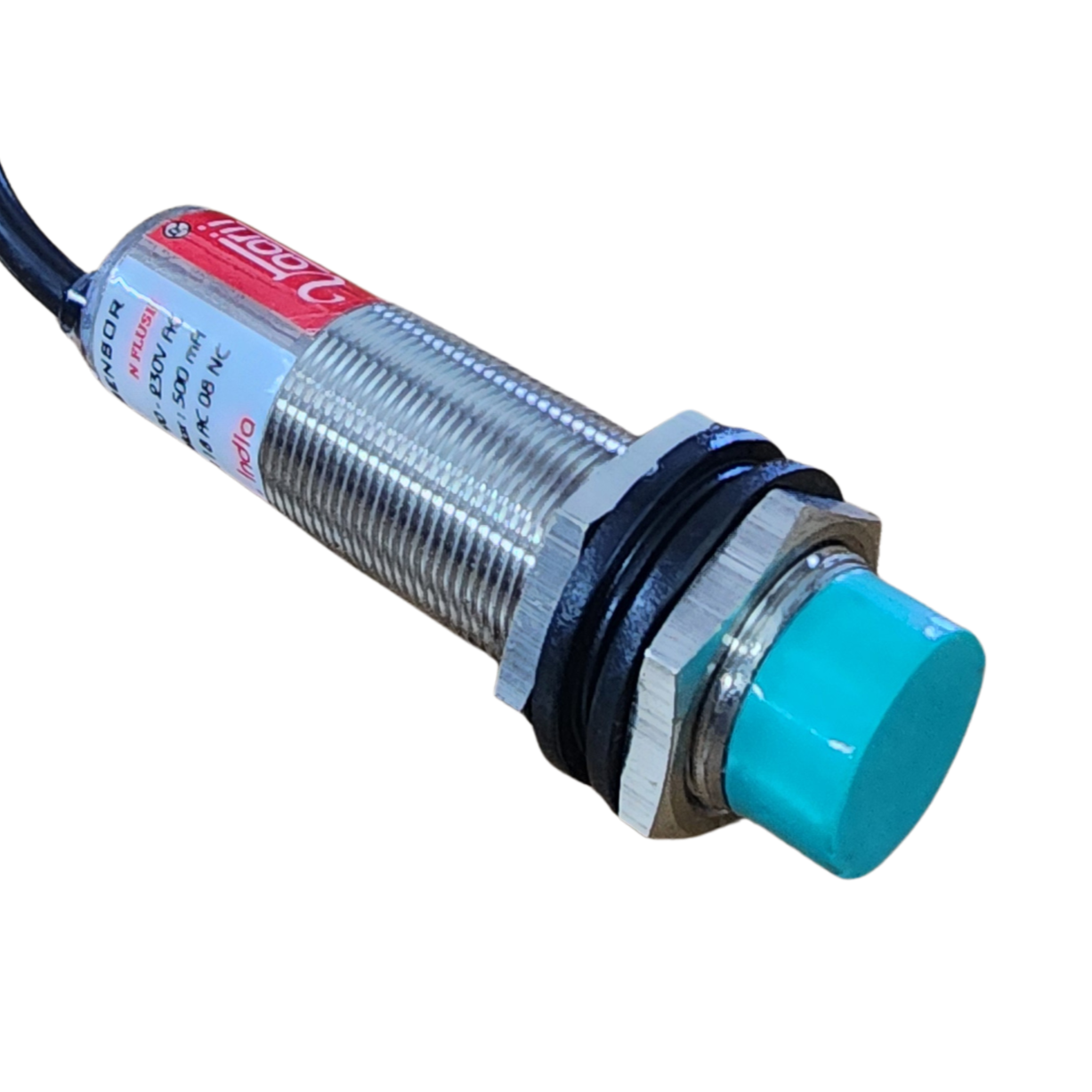

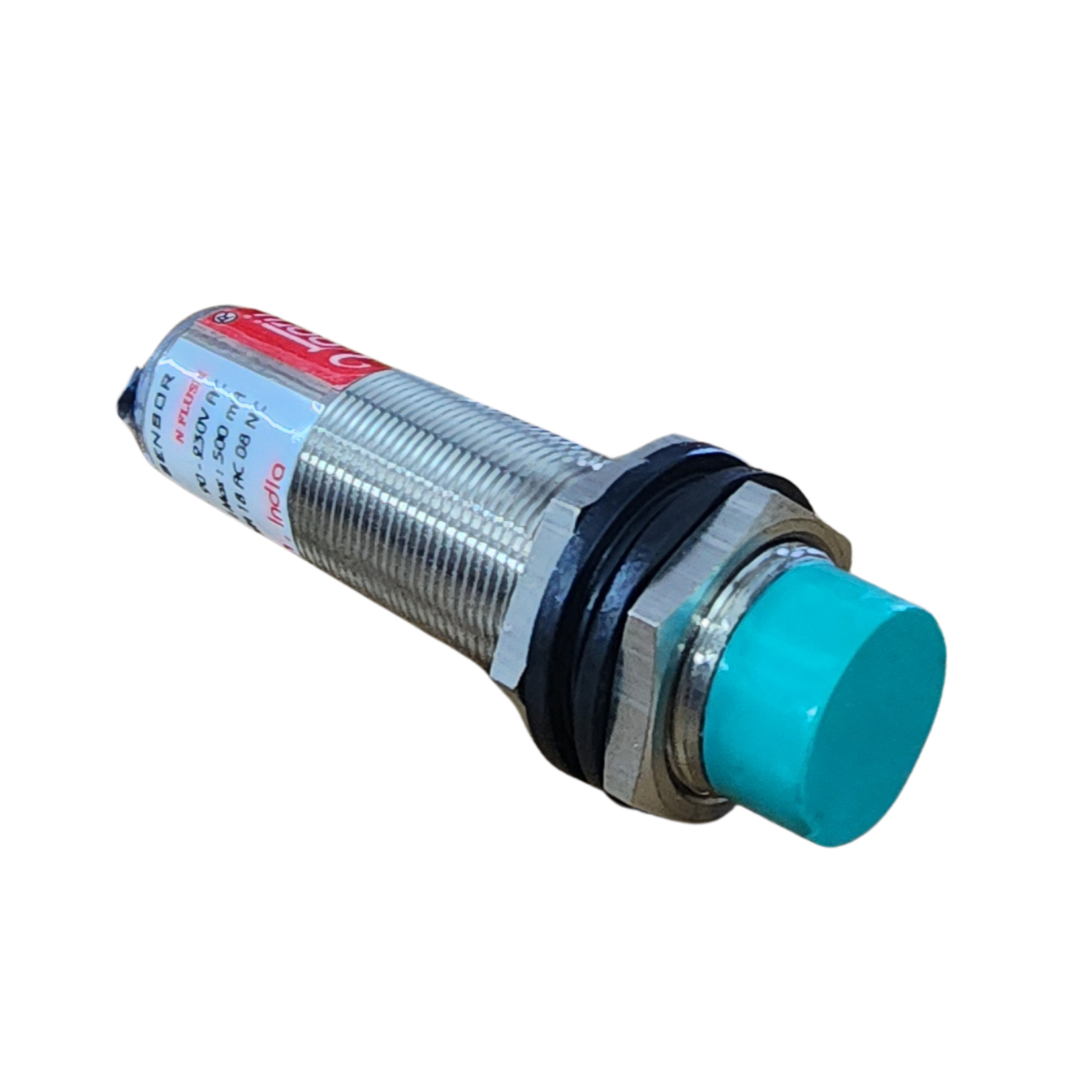

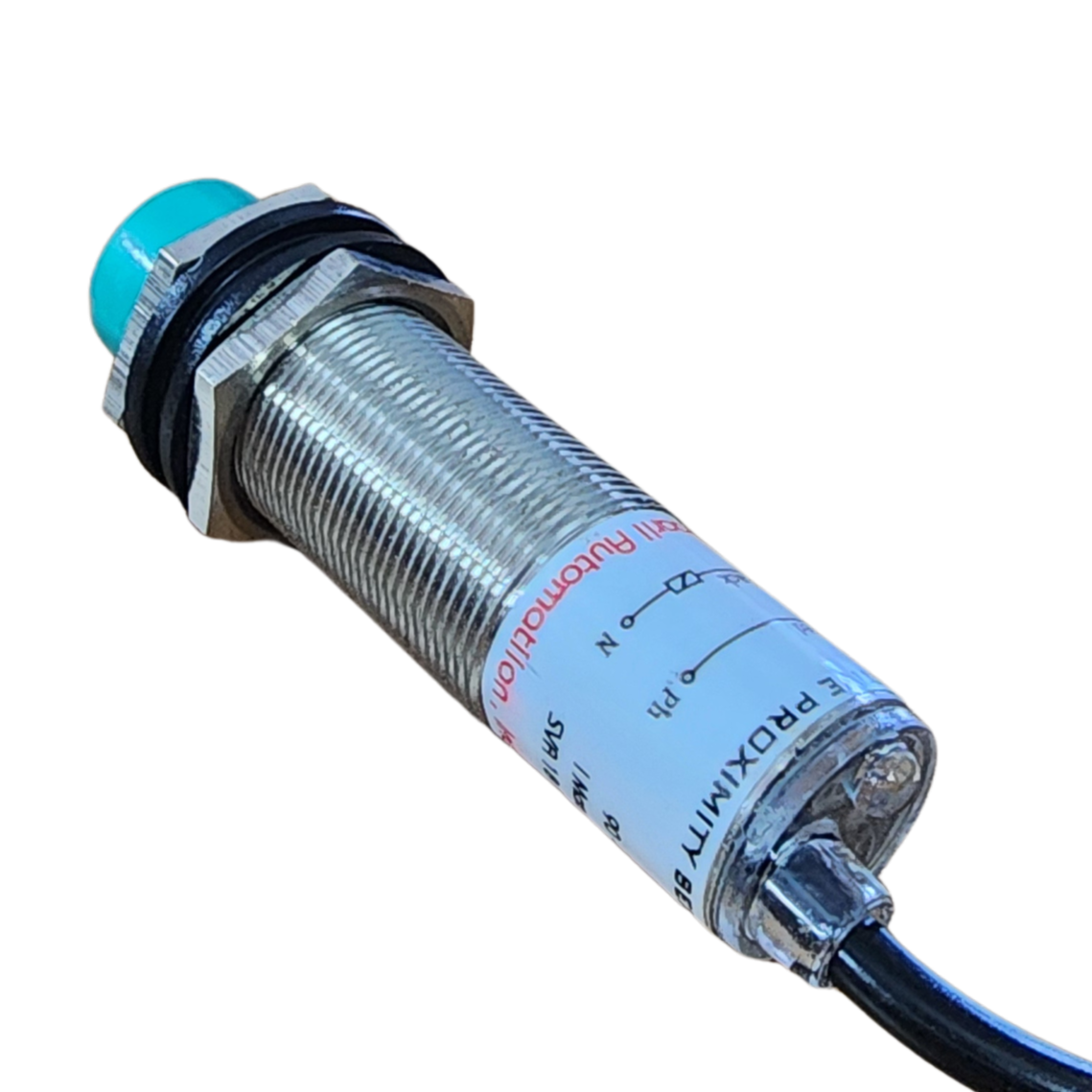

Inductive Proximity Sensor SVA 18 AC NC NON FLUSH Technical Data with ABS - Grey Color sensing face and IP 65 protection.
Key Features
- check_circleStandard Series
- check_circle8 mm Sensing NonFlush
- check_circleNC
- check_circle2 Wire AC
tune
Technical Specifications
Output Logic/Switching Element FunctionNC
Rated Operating Distance8 mm ± 10%
TypeNon Flush
Supply Voltage90-230 VDC
Frequency of Operating cycle25 Hz
Hysteresis/Differential travel<10%
Rated Operating Current500 mA
No-Load Supply Current< 15 mA
Voltage Drop< 2.2VAC
OFF State Current< 0.1mA
Rated Insulation Voltage75 VAC
Utilization CategoryAC-13
Repeatability/ Repeat Accuracy0.1 mm
Protection CircuitPolarity Reversal
Function IndicationLED
Operating Temperature-25° C to +70° C
Connection TypeCable PVC, 2 Core - 2 Mtrs.
Core Cross-section22 AWG
Housing MaterialBrass Housing with Nickel Plated
Sensing FaceABS - Grey Color
Degree of ProtectionIP 65
Standards ConformityEN 60947- 5-2
ApprovalCE
