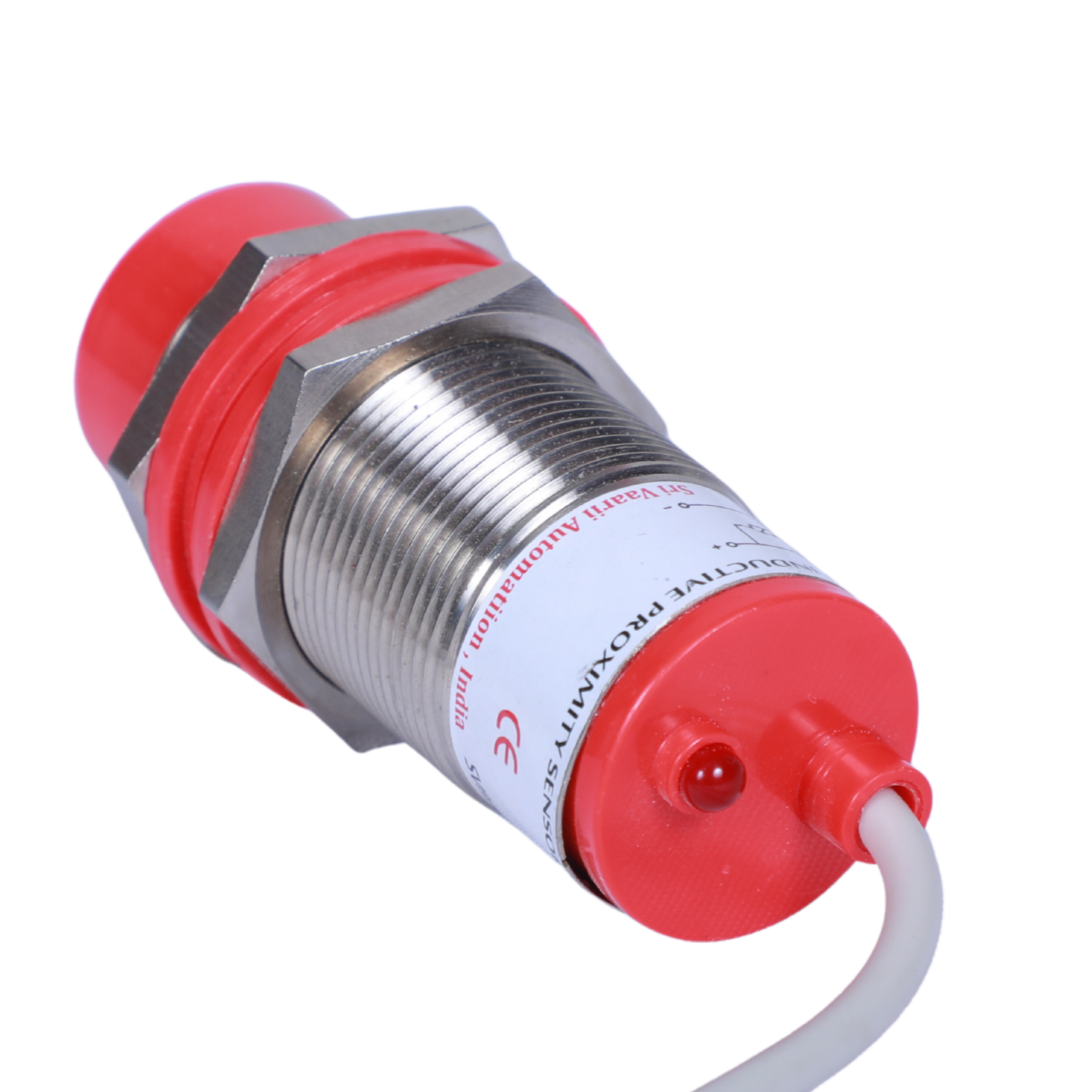

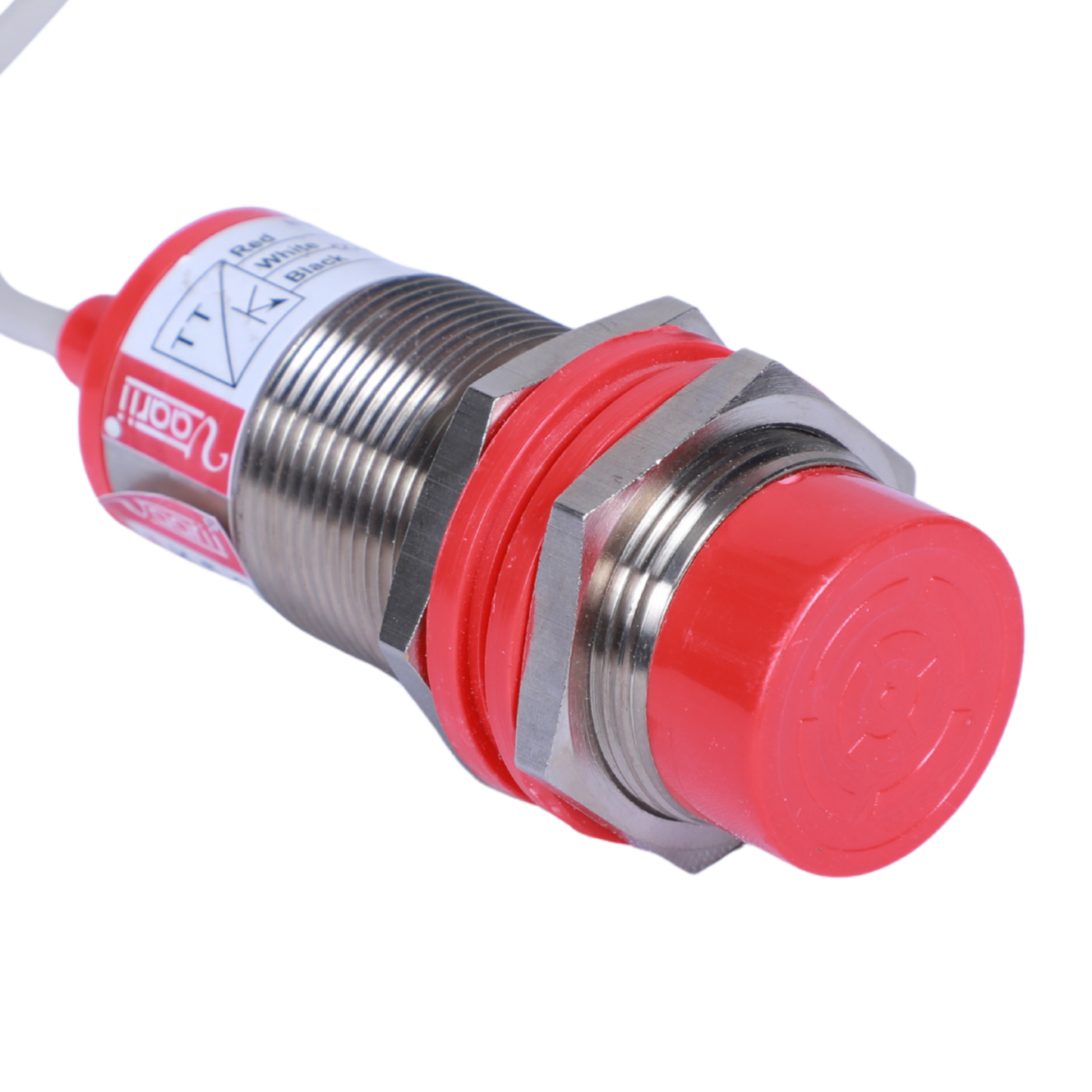

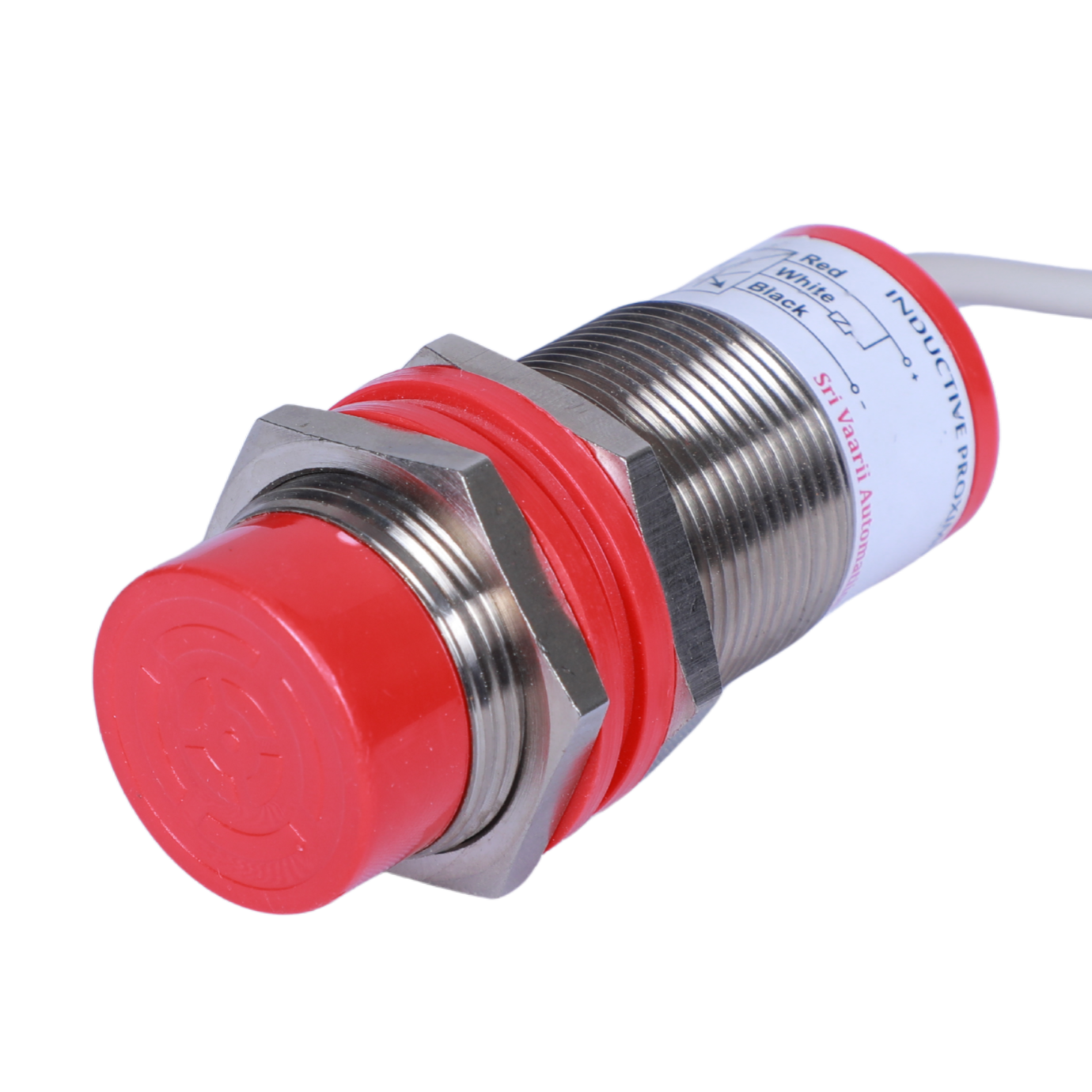

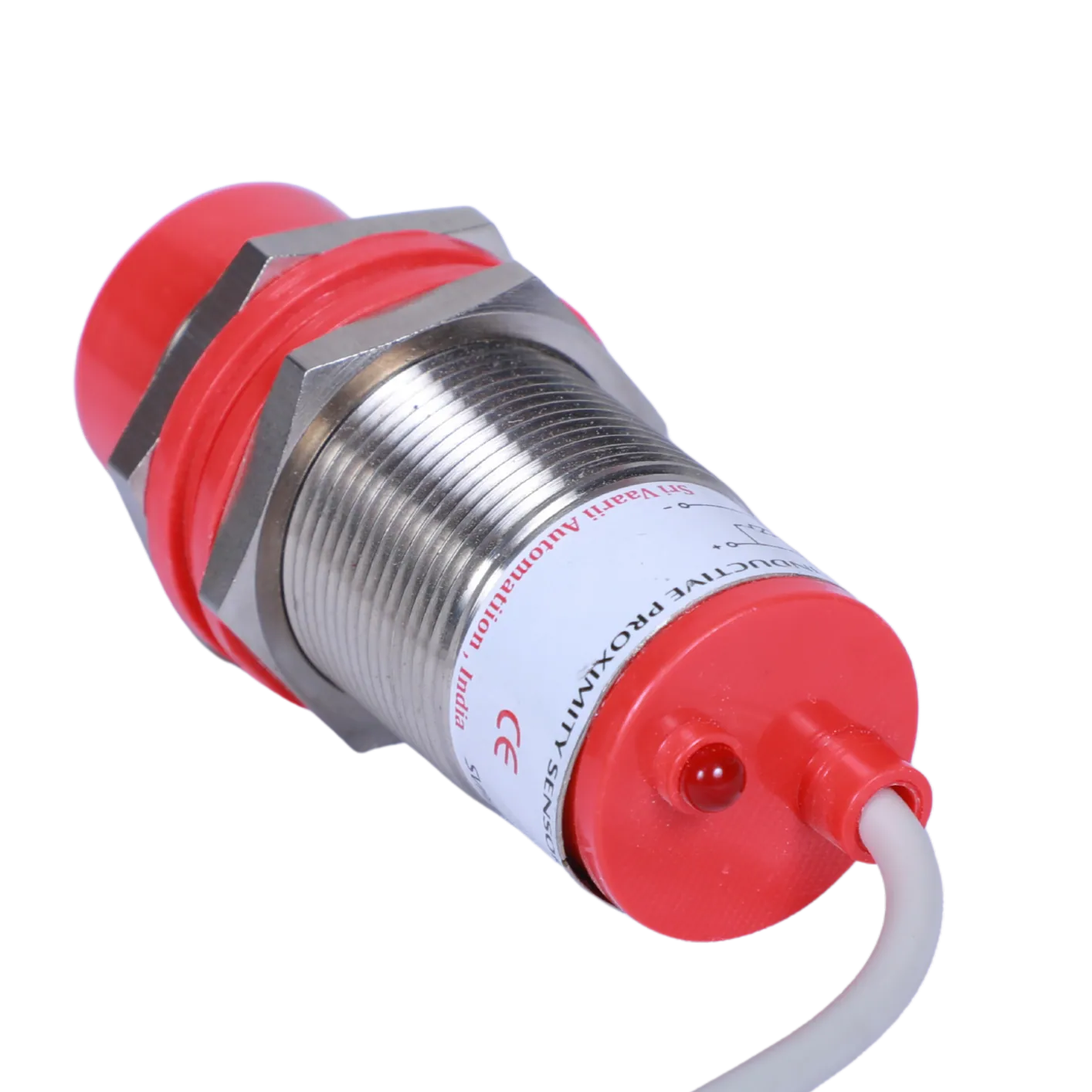

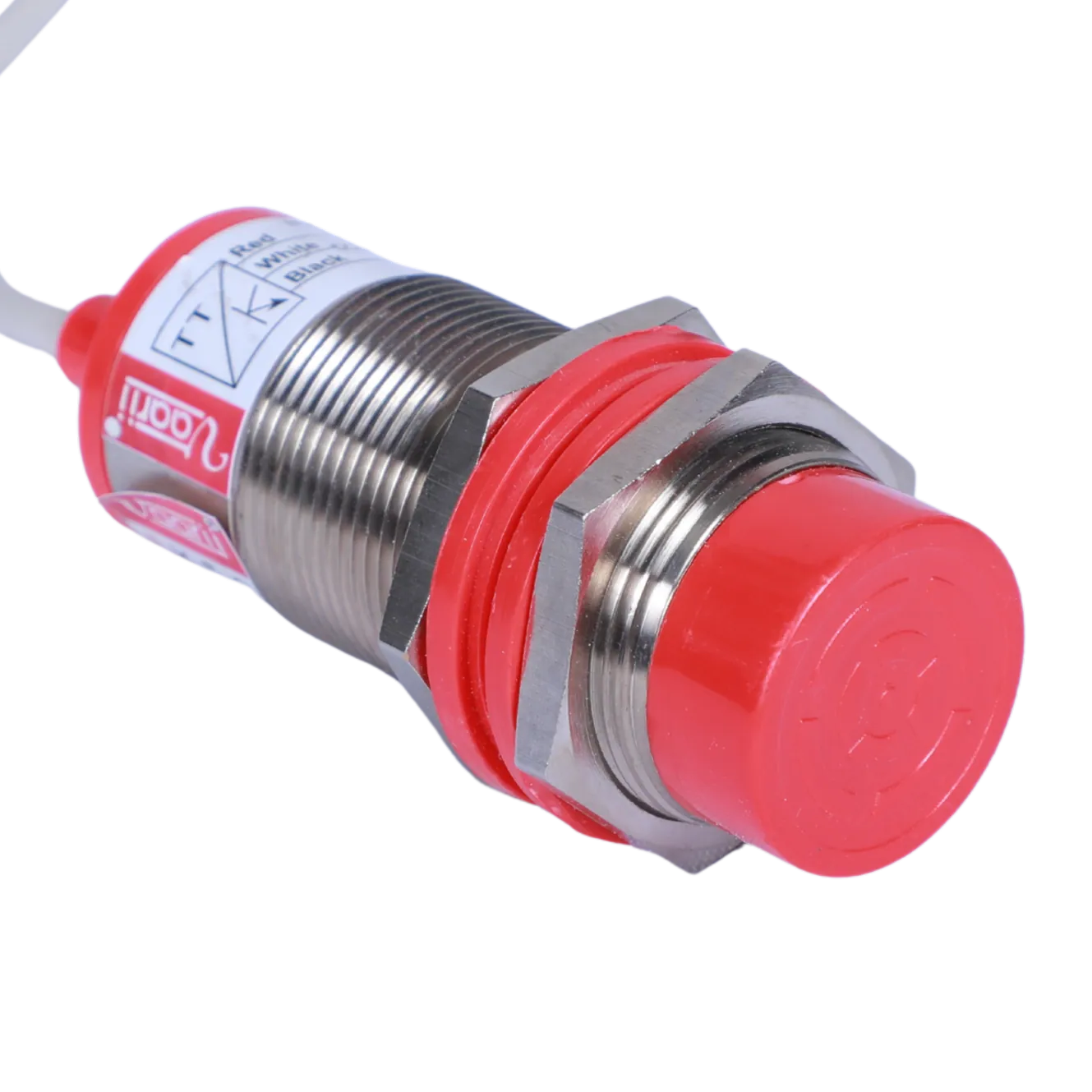

M30 DC NPN NON FLUSH
Model: SVA 30 DC NPN NON FLUSH|Series: M30 Inductive Proximity Sensor
Inductive Proximity Sensor SVA 30 DC NPN NON FLUS15 with ABS - Red Color sensing face and IP67 protection.
Key Features
- check_circleStandard Series
- check_circle15 mm Sensing Non Flush
- check_circleNPN, NO/NC
- check_circle3 Wire DC
tune
Technical Specifications
Output Logic/Switching Element FunctionNPN, NO / NC
Rated Operating Distance15 mm ± 10%
TypeNon Flush
Supply Voltage10-30 VDC
Frequency of Operating cycle1000 Hz
Hysteresis/Differential travel<10%
Rated Operating Current500 mA
No-Load Supply Current< 15 mA
Voltage Drop< 2.2Vdc
OFF State Current< 0.1mA
Rated Insulation Voltage75 Vdc
Utilization CategoryDC-13
Repeatability/ Repeat Accuracy0.1 mm
Protection CircuitPolarity Reversal
Function IndicationLED
Operating Temperature-25° C to +70° C
Connection TypeCable PVC, 3 Core - 2 Mtrs.
Core Cross-section22 AWG
Housing MaterialBrass Housing with Nickel Plated
Sensing FaceABS - Red Color
Degree of ProtectionIP67
Standards ConformityEN 60947- 5-2
ApprovalCE
