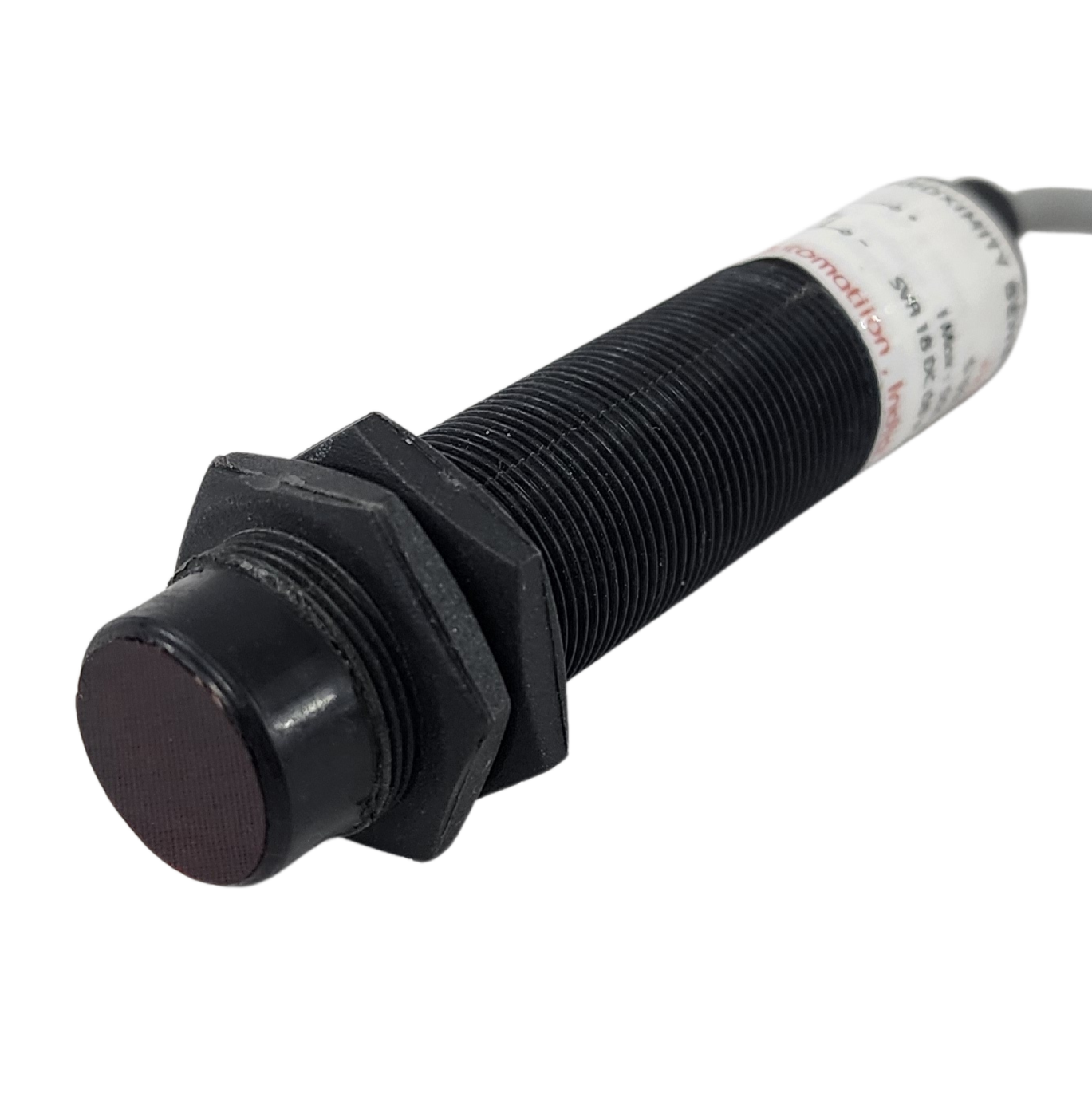

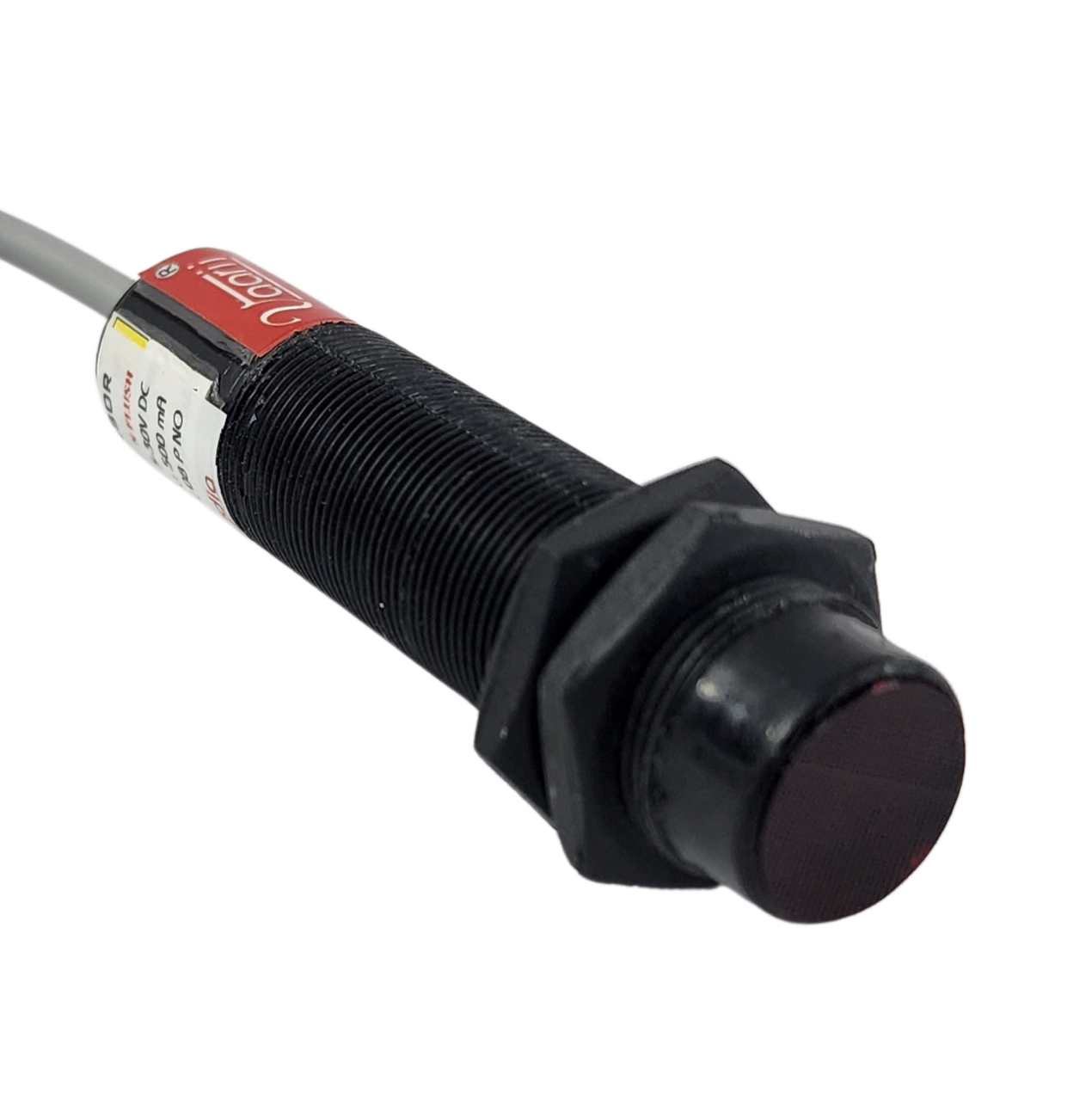

M18 Photoelectric Sensor NPN NO + NC
Model: SVA 18 DC NPN NO + NC|Series: M18 PHOTOELECTRIC
Photoelectric Sensor SVA 18 DC NPN NO + NC with 250mm adjustable sensing distance, Infrared LED (880nm) light source, and IP67 protection. Ideal for non-contact detection of objects in industrial automation applications.
Key Features
- check_circleStandard Series
- check_circle250mm Sensing Flush Adjustable
- check_circleNPN, NO + NC
- check_circle3 Wire DC
tune
Technical Specifications
Output Logic/Switching Element FunctionNPN, NO + NC
Rated Operating Distance250mm (Adjustable) ± 10%
Light SourceInfrared LED (880nm)
Supply Voltage10-30 VDC
Load Current< 200 mA
Voltage Drop< 2.5 V
Consumption Current< 25 mA
Hysteresis< 10%
Repeat Accuracy< 5%
Response Time< 8.2 ms
Output IndicatorRed LED
Polarity ProtectionYes
Impulse Voltage Withstand1000 V / AC 50 / 60 HZ 60s
Protection CircuitPolarity Reversal
Short-Circuit ProtectionNo
Operating Temperature-15° C to +55° C
Ambient Moisture35% to 95%
Connection TypeCable PVC, 2 Mtrs.
Housing MaterialBrass Housing with Nickel Plated
Sensing FaceABS - Black Color
Degree of ProtectionIP67
Standards ConformityEN 60947- 5-2
ApprovalCE
