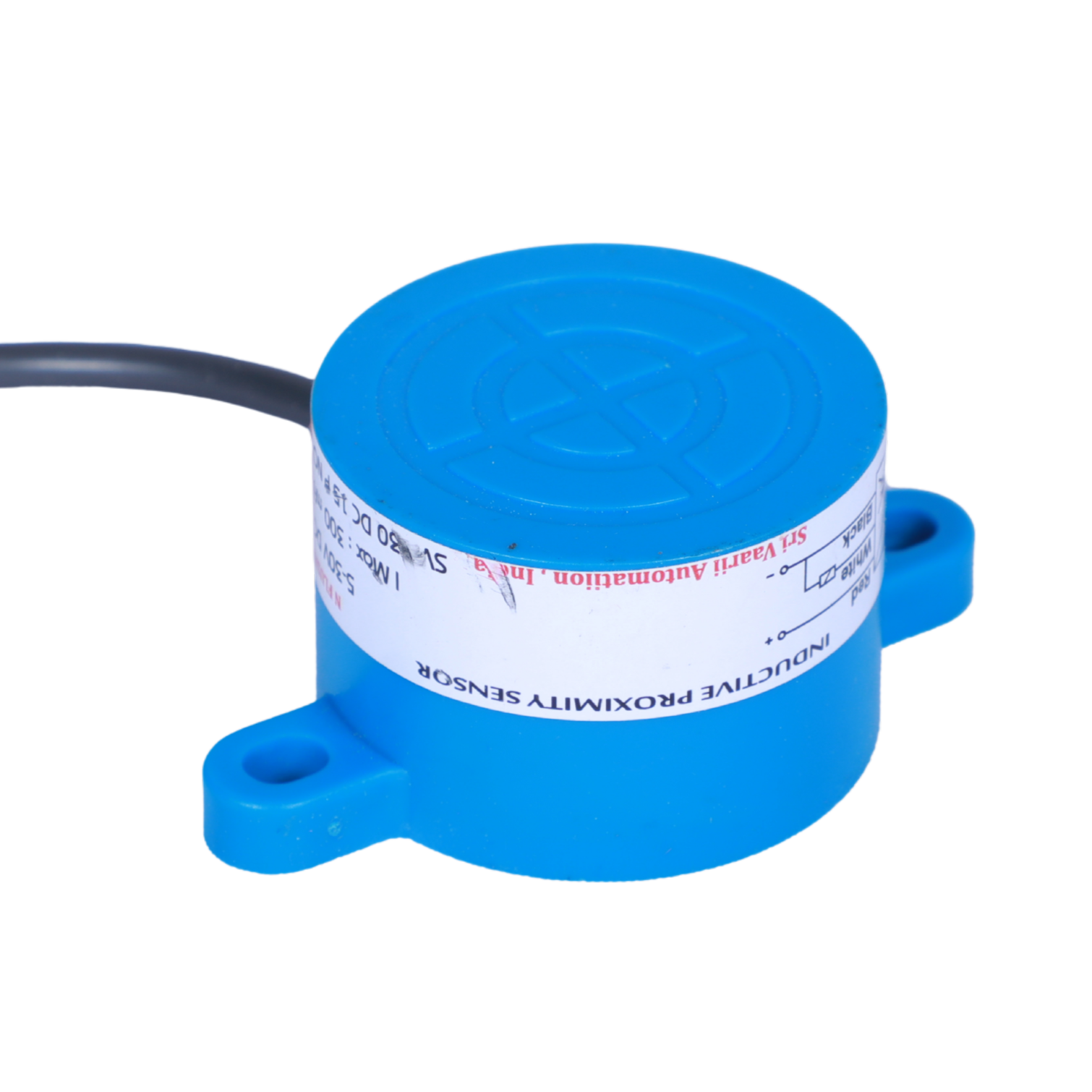

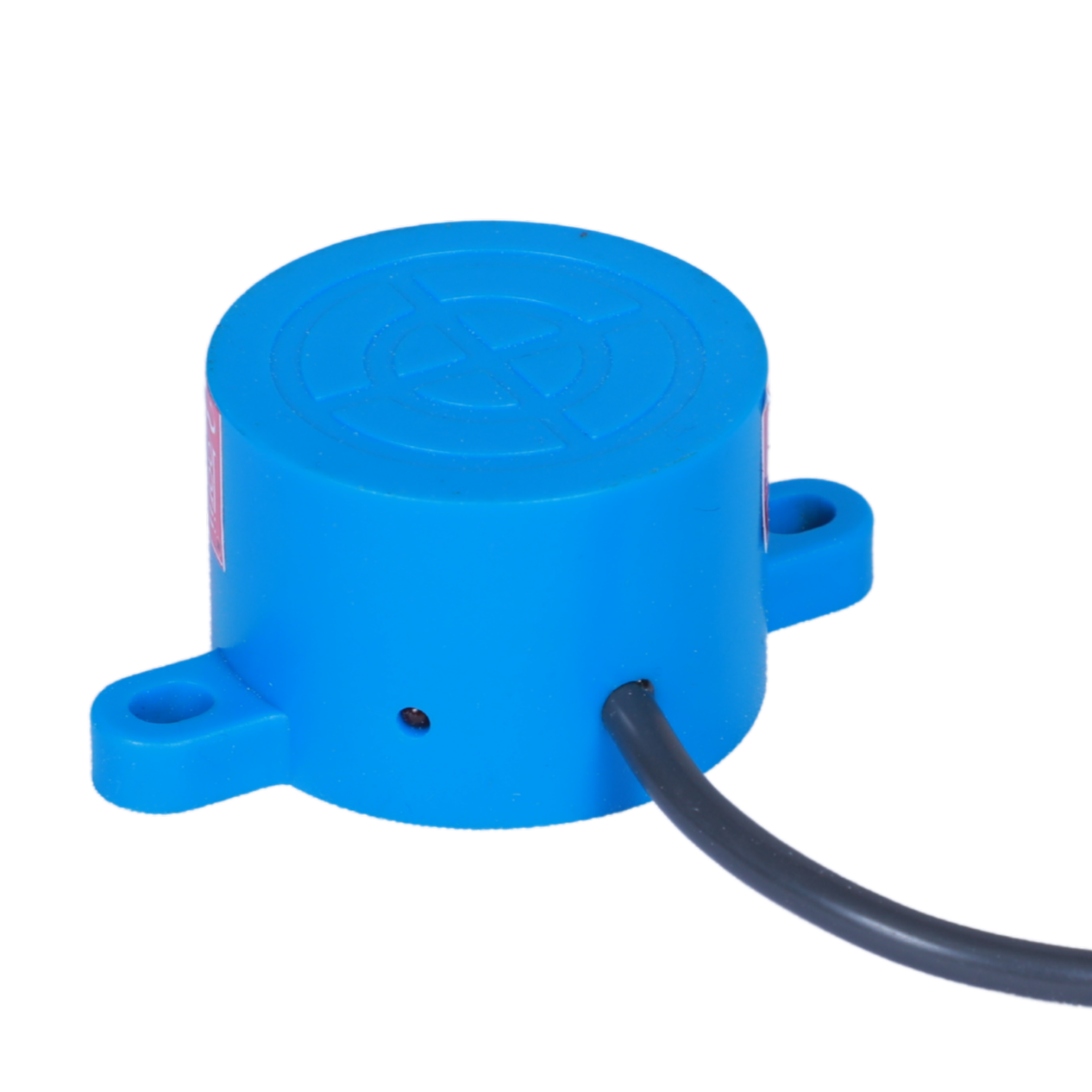

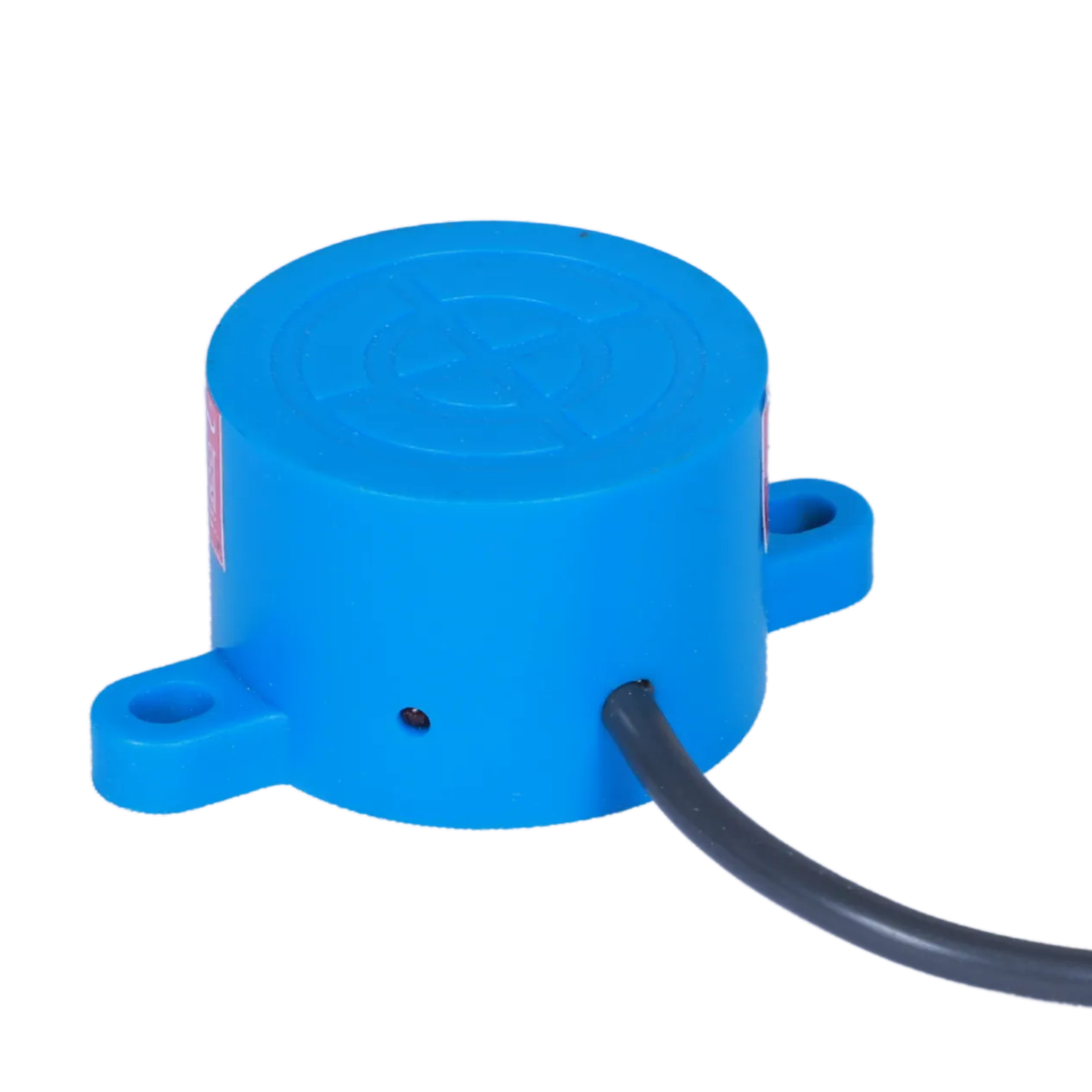

M30 DC (For Casting Molding Machine)
Model: SVA 30 DC CMM|Series: M30 Inductive Proximity Sensor
Inductive Proximity Sensor SVA 30 D with ABS - Yellow Color sensing face and IP67 protection.
Key Features
- check_circleSpecial Series
- check_circle110 mm Sensing Flush
- check_circlePNP / NPN, NO / NC, FLUSH / NON FLUSH
- check_circle3 Wire DC
tune
Technical Specifications
Output Logic/Switching Element FunctionPNP / NPN, NO / NC
Rated Operating Distance110 mm ± 10%
TypeFlush / Non Flush
Supply Voltage10-30 VDC
Frequency of Operating cycle1000 Hz
Hysteresis/Differential travel<10%
Rated Operating Current500 mA
No-Load Supply Current< 15 mA
Voltage Drop< 2.2Vdc
OFF State Current< 0.1mA
Rated Insulation Voltage75 Vdc
Utilization CategoryDC-13
Repeatability/ Repeat Accuracy0.1 mm
Protection CircuitPolarity Reversal
Function IndicationLED
Operating Temperature-25° C to +70° C
Connection TypeCable PVC, 3 Core - 2 Mtrs.
Core Cross-section22 AWG
Housing MaterialBrass Housing with Nickel Plated
Sensing FaceABS - Yellow Color
Degree of ProtectionIP67
Standards ConformityEN 60947- 5-2
ApprovalCE
